PRODUCT FEATURES

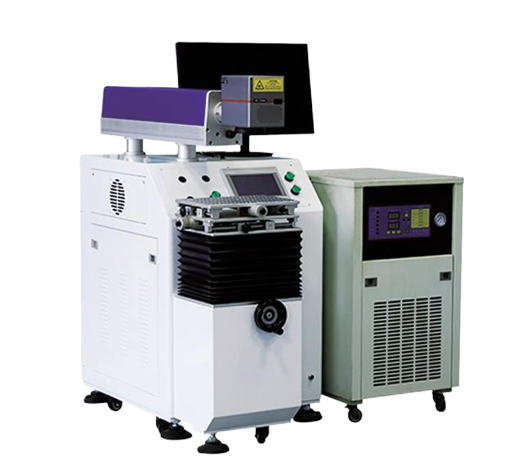

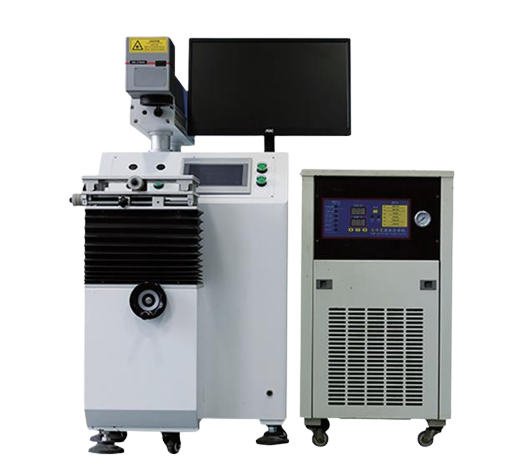

YAG laser welding machine is a machine for laser material processingIt uses high-energy laser pulse to heat the material locally in a smallarea . The energy of laser is transferred to the intemal diffusion of thematerial through heat transfer , and the material is melted to form apecific molten pool to achieve the purpose of welding ; According toits working mode can be divided into : laser mold welding machine( Pocket welding machine ) , automatic welding machine , laser spowelding machine
APPLICABLE MATERIALS

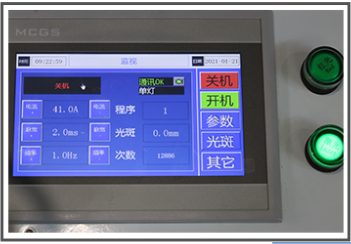

1 . Small light spot design , higher precision , smaller solder joint , more beautiful2 . Light worktable , high speed and efficiency3 . Special welding control system , high stability , easy to understand , easy tolearn and easy to use4 . It has strong expansibility , and can be combined with assembly line , photoelectric detector , pneumatic fixture and other devices for automatic unat -tended processing to meet continuous work and mass production
TECHNICAL PARAMETER
model | LS-YAGHJ-200 / 300W |
naximum power | 200 / 300W |
Laser wavelength | 1064nm |
frequency range | 0~50HZ |
Pulse width range | 0 . 1~20ms |
Adjustment range of light spot | 0.3~2mm |
Aiming and positioning | Cross cursor and red light( optional camera system ) |
Rated power | 6 . 5KW |
Cooling mode | water cooling |
Working power supply | Working power supply |
